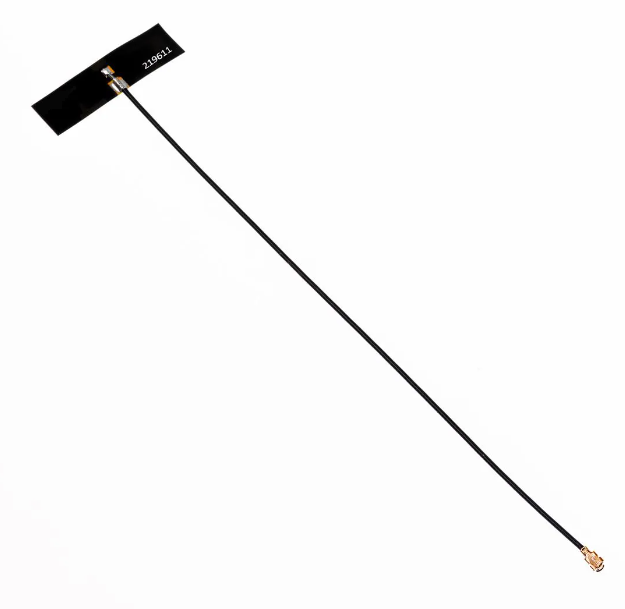

Wi-Fi Flexible antenna

Wi-Fi Flexible antenna

Regular price €9,00 EUR
Regular price Sale price €9,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

Low Gain Flex Antennas feature a flexi material substrate, center feedline, and micro-coaxial cable offering design flexibility. The top side of these polyflex antennas offer easy peel-and-stick mounting anywhere within the device chassis. On the reverse of the antenna, double-sided tape provides instant application anywhere on the inside wall of the device's chassis by simply peeling off the tape backing.

Product Family: Antennas
Component Type: Flexible Antenna with Cable
Function: Signal
Overview Internet of Things (IoT) Antennas: Wi-Fi, Bluetooth
Protocol: BLE, BT, Wi-Fi, Wireless Hart, Zigbee
Taxonomy: Antennas
Type: Wi-Fi Antenna

Cable Length: 150.00mm
Length: 35.40mm
Mounting Style: Adhesive
Net Weight: 0.778/g
Packaging Type: PET Bag
Polarization: Linear
Radiation Pattern: Omnidirectional
Width: 15.40mm

Band#1 F_End (MHz) 2500
Band#1 F_Start (MHz) 2400
Band#2 F_End (MHz) 5850
Band#2 F_Start (MHz) 5150
Band#3 F_End (MHz) 7125
Band#3 F_Start (MHz) 5925
Electrical Connectivity: Cable
Peak Gain: (dBi) 2.3 @ 2.4 GHz, 3.1 @ 5 GHz, 3.4 @ 5 GHz
Return Loss - S11 (dB): < -10
Total Efficiency: >69% @ 5.9 GHz, >70% @ 5 GHz, >72% @2.4 GHz
