Namino

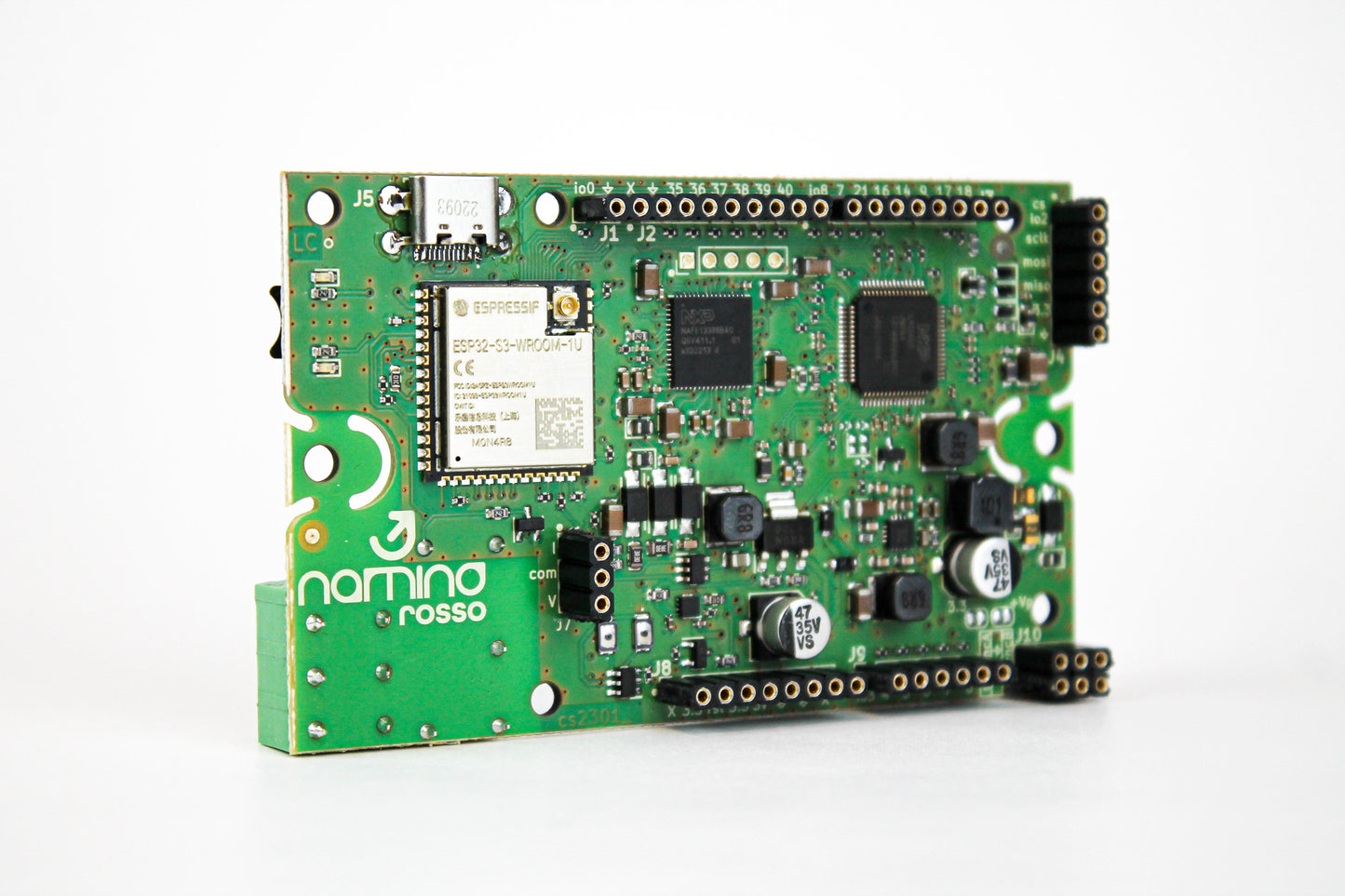

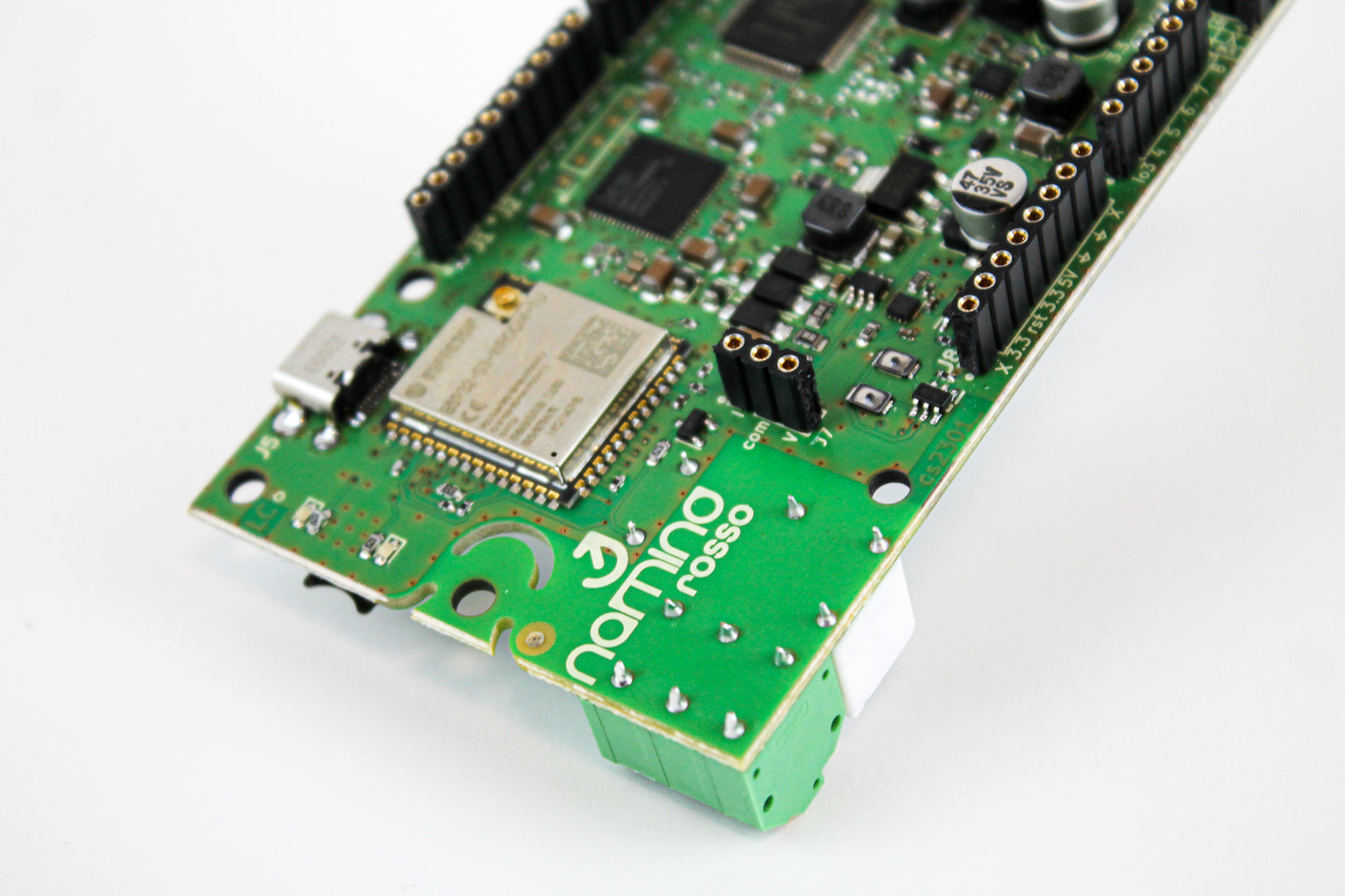

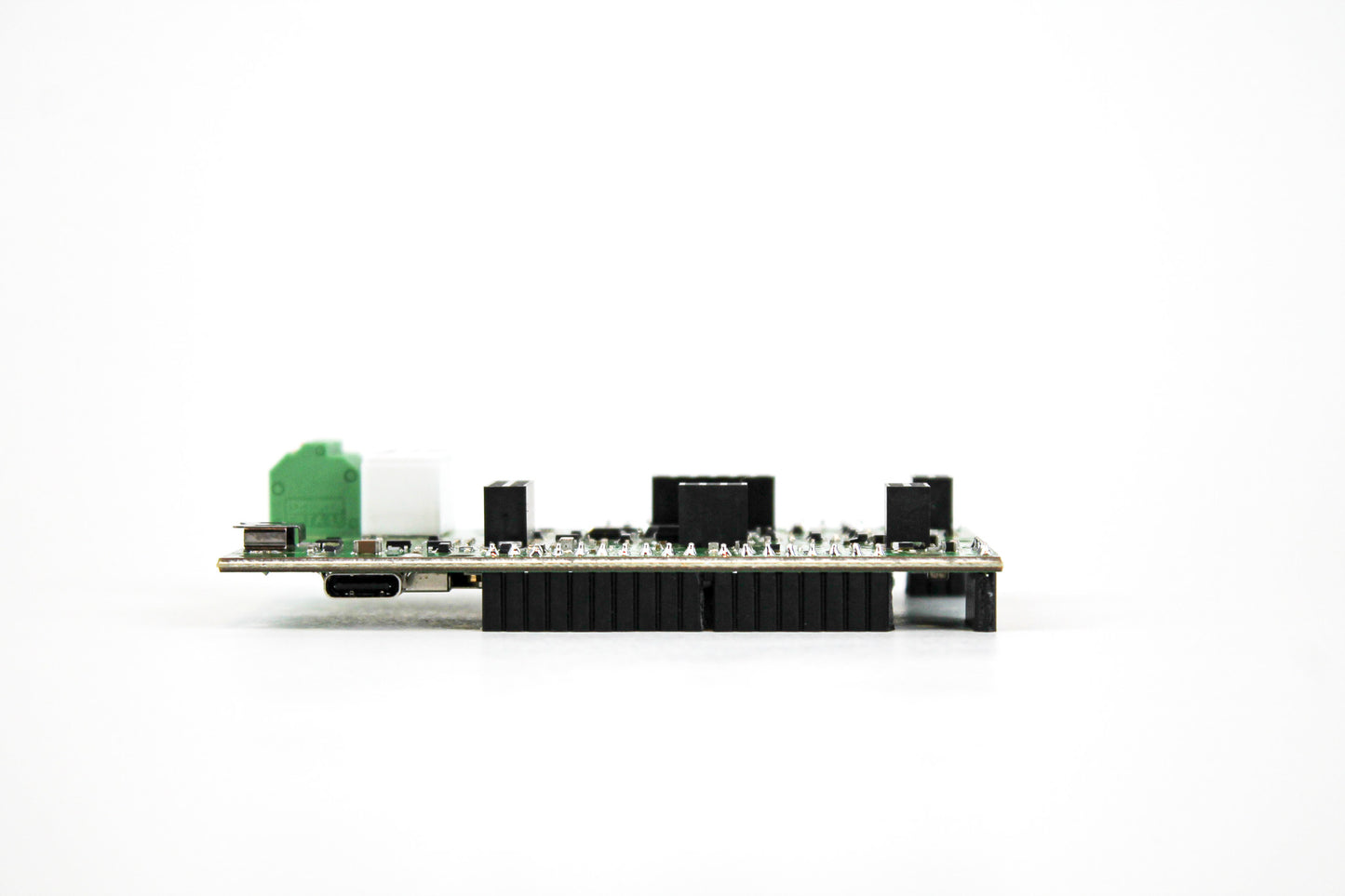

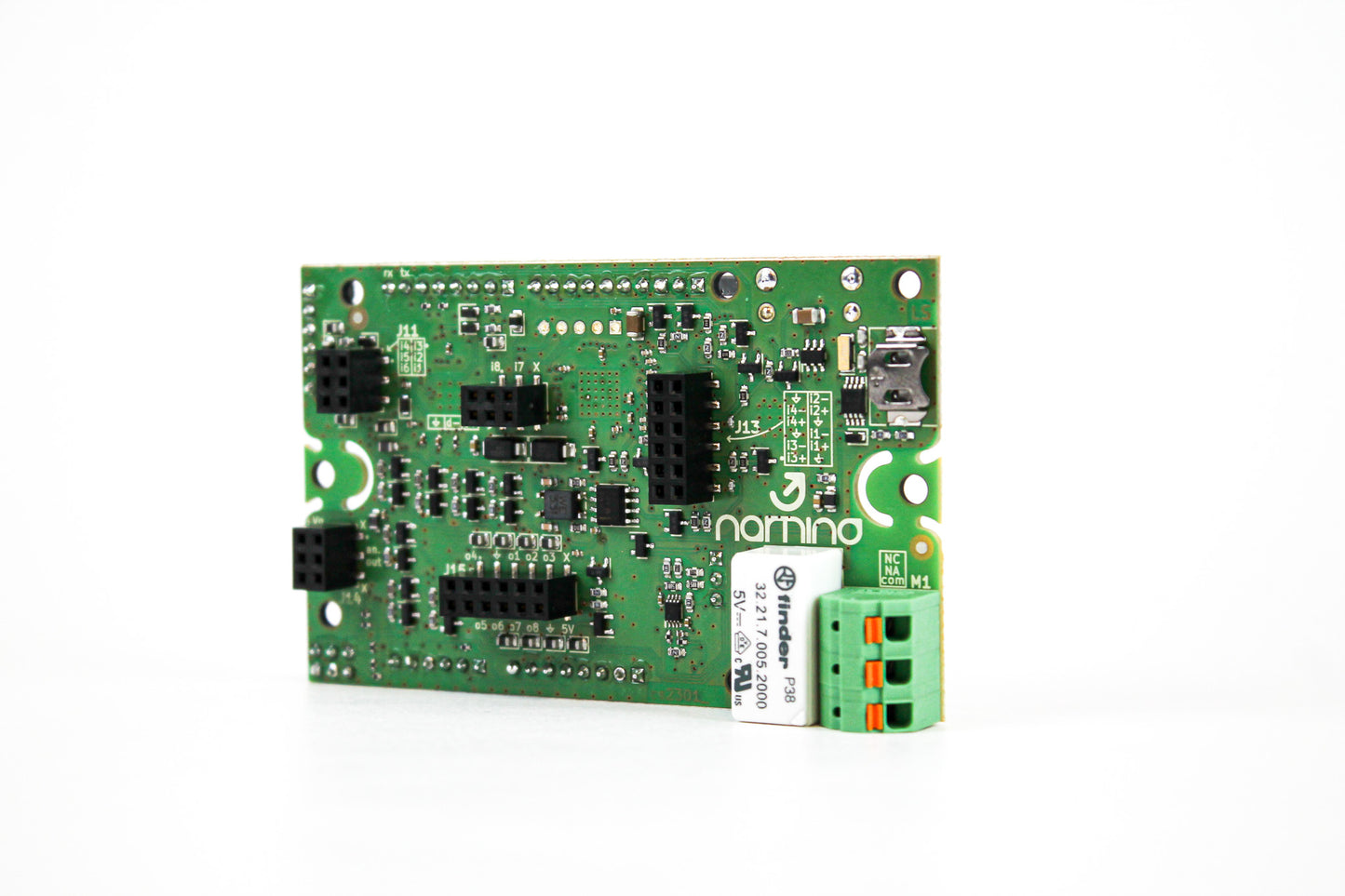

Namino ROSSO

Namino ROSSO

Regular price €159,00 EUR
Regular price €159,00 EUR Sale price €159,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

CPUs and memories:

  • ESP32-S3-WROOM-1U-N4R8 (ESP32-S3 series of embedded SoCs, Xtensa®dual-core 32-bit LX7 microprocessor, up to 240MHz)
  • 4MB Flash
  • 512KB SRAM
  • 8MB PSRAM
  • 16KB SRAM in RTC

NAMINO ROSSO provides the following input and output lines:

  • 8 PNP digital inputs (up to 24Vdc)
  • 1 knob input and button
  • 8 PNP digital outputs (up to 24Vdc) of which 1 for stepper motor command with total current 200mA
  • 1 SPDT relay output of 5A
  • 8 single ended analog inputs (0-10V or 0-20mA) or 4 thermometric (NTC, PTC, PT1000) or 4 thermocouples (J, K, T) or 2 load cells, software configurable
  • 1 analog output jumper configurable: 0-10V or 0-20mA
  • ARDUINO UNO compatible shield interface

In addition to the lines present on the ARDUINO UNO interface, there are the following communication interfaces:

  • RS485
  • Wi-Fi (802.11 b/g/n, Bit rate: 802.11n up to 150 Mbps) - need antenna (not included)
  • Bluetooth LE: Bluetooth 5, Bluetooth mesh - need antenna (not included)
  • Wi-fi / bluetooth antenna connector
  • USB C device for programming
  • SPI interface (SD card module not included)
  • RTC (real time clock / calendar) equipped with a rechargeable buffer battery
  • I²C
  • UART

NOTE: WiFi and BT shares the same antenna.

Power supplies:

  • 5Vdc via USB
  • 7Vdc ÷ 30Vdc
  • With Namino NERO board:
    • Namino NERO VAC: 100Vac ÷ 250Vac
    • Namino NERO VDC: 7Vdc ÷ 30Vdc
    • Rechargeable 18650 lithium battery for power backup (holder and battery not included)
