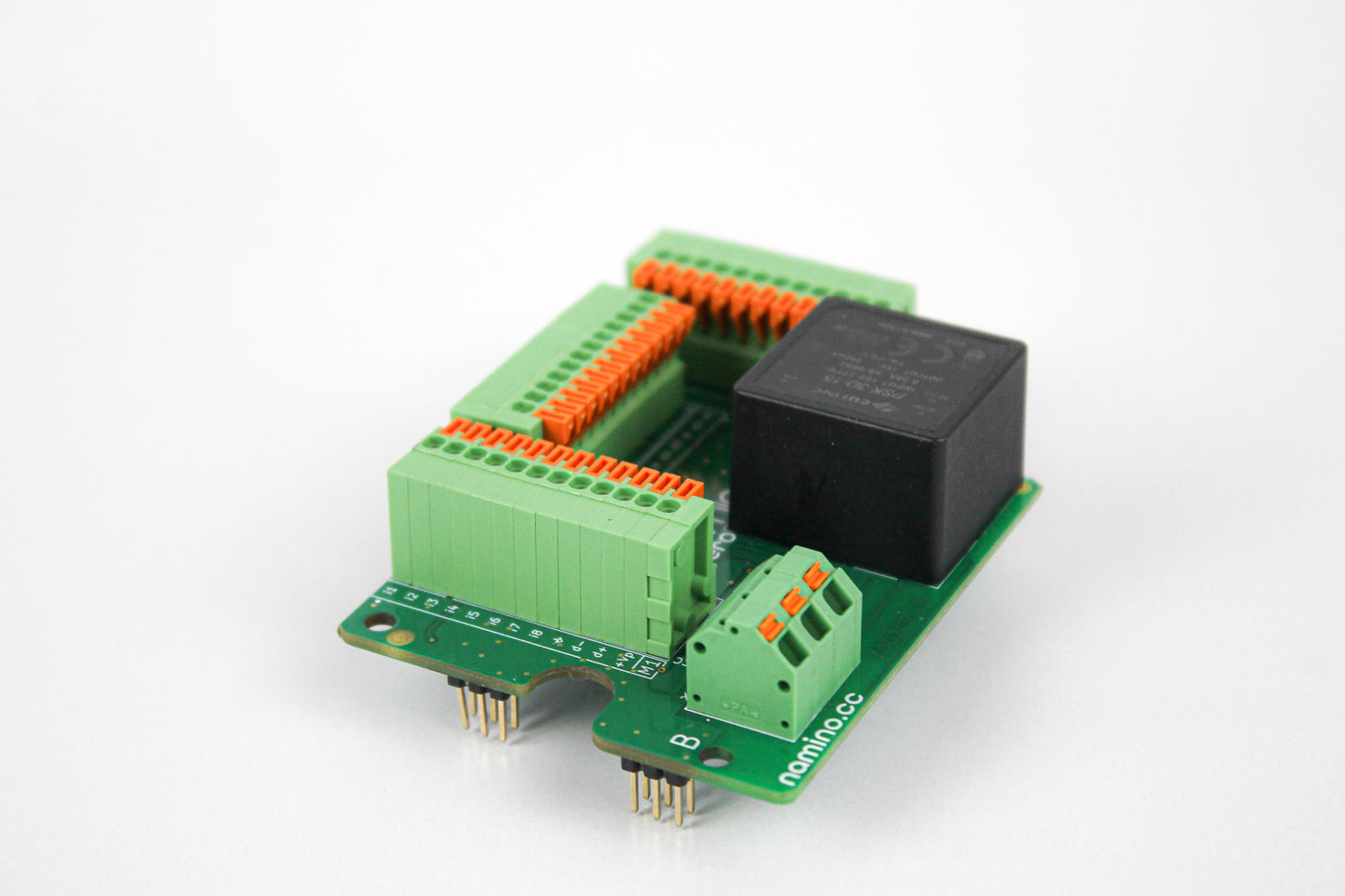

Namino NERO VAC

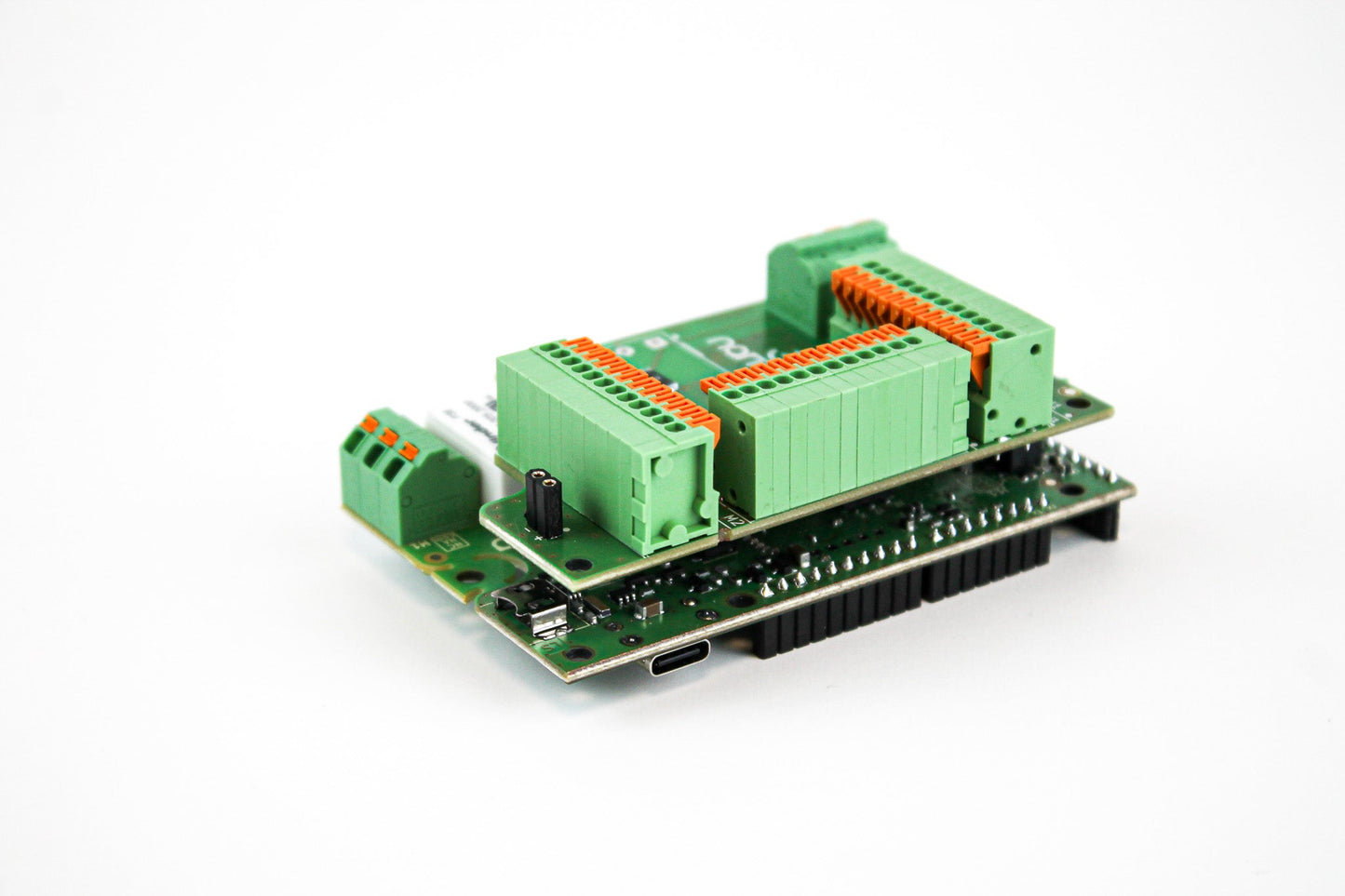

Namino NERO needs to be assembled on the Namino ROSSO/ARANCIO boards to make the signal lines available on the 2.5mm pitch terminal block.

The Namino NERO board provides power supply terminals and industrial side signal terminals (field I/O) to facilitate wiring within the application.

It is possible to connect a rechargeable 18650 lithium battery as a power backup (holder and battery not included).

There are two versions of Namino NERO which differ in the type of power supply:

• Namino NERO VDC: Power supply in VDC (7Vdc ÷ 30Vdc)

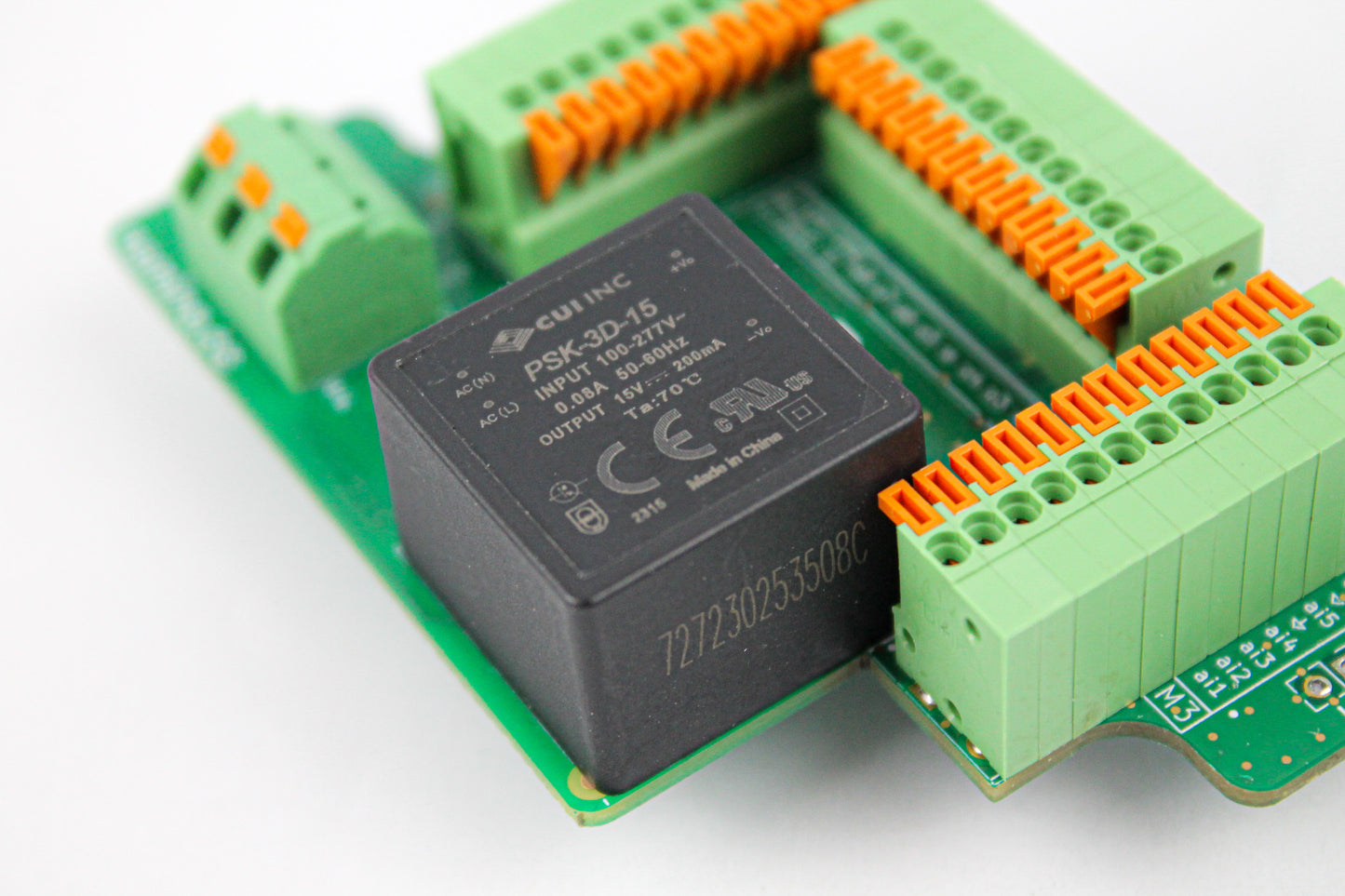

• Namino NERO VAC: Power supply in VAC (100Vac ÷ 250Vac)
