Regular price €39,00 EUR
Regular price Sale price €39,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

CPUs and memories:

  • ESP32-S3-WROOM-1U-N4R8 (ESP32-S3 series of embedded SoCs, Xtensa®dual-core 32-bit LX7 microprocessor, up to 240MHz)
  • 4MB Flash
  • 512KB SRAM
  • 16KB SRAM in RTC
NAMINO BIANCO provides the following interfaces:
  • Arduino Uno shield interface
  • Mikroe interface
  • Qwiic interface (I²C)
In addition to the interfaces (Arduino Uno, Mikroe, Qwiic) there are the following input and output lines:
  • 6 input lines capable of reaching up to 30V

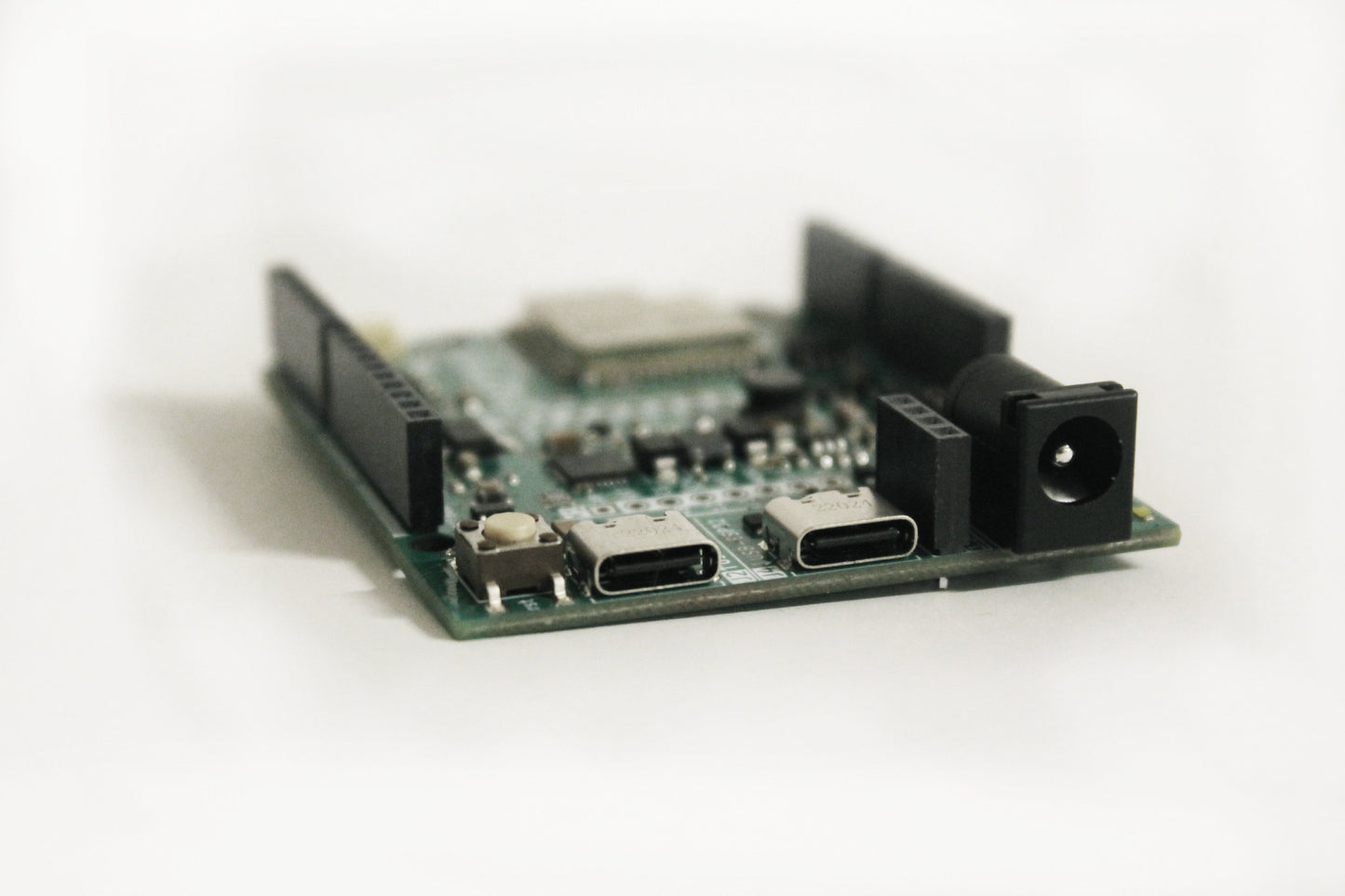

  • 2 x USB type C device for programming and usage (NOT OTG)
  • 1 RS485 (for modbus RTU master/slave as well)
  • 1 pushbutton for programming
  • 1 pushbutton for reset
  • 1 led white programmable
  • 1 led white as power indicator
  • Wi-Fi (802.11 b/g/n, Bit rate: 802.11n up to 150 Mbps) - need antenna (not included)
  • Bluetooth LE: Bluetooth 5, Bluetooth mesh - need antenna (not included)
  • Wi-fi / bluetooth antenna connector
NOTE: WiFi and BT shares the same antenna

Power supplies:
  • 5Vdc via USB
  • 7Vdc ÷ 28Vdc
